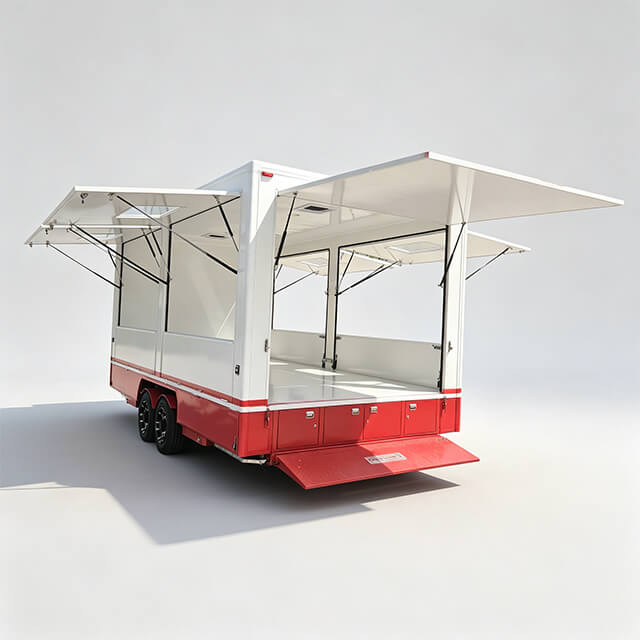

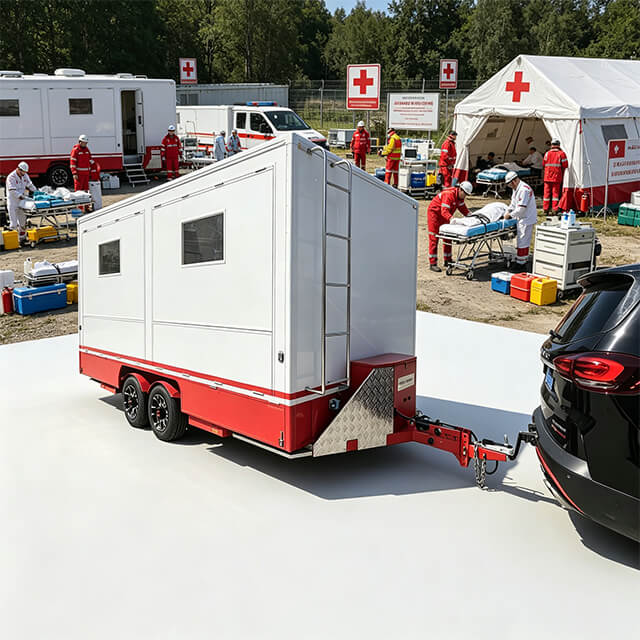

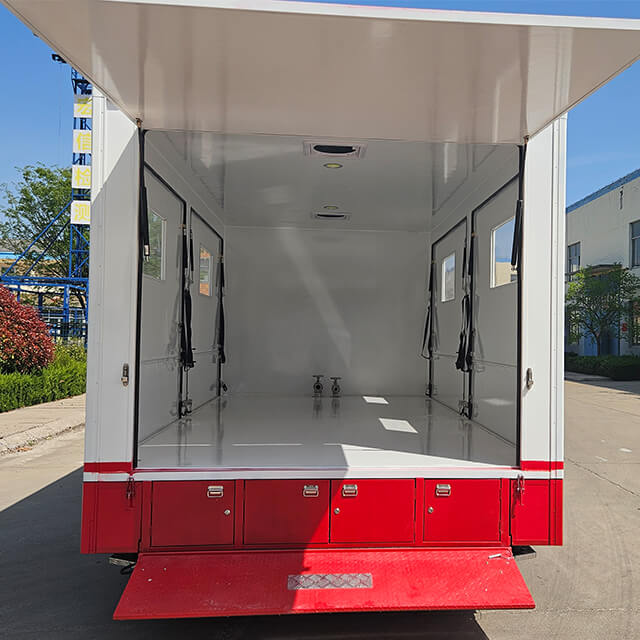

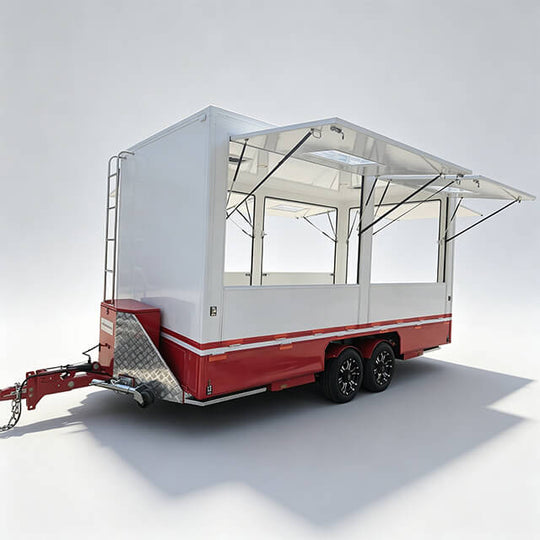

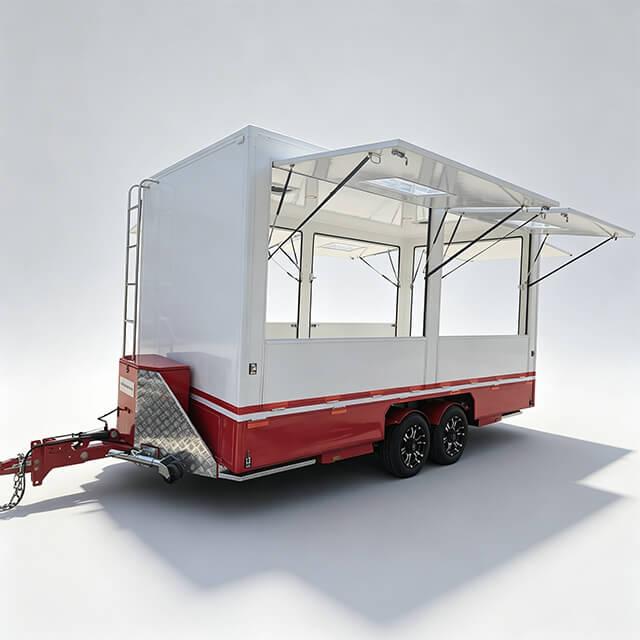

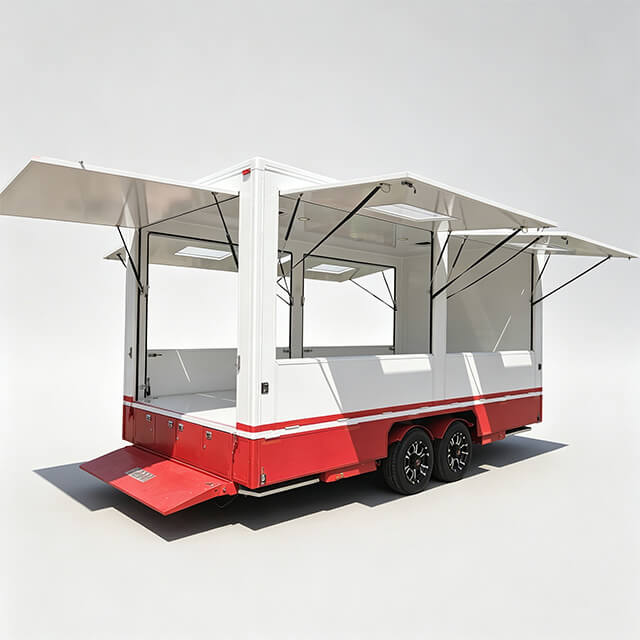

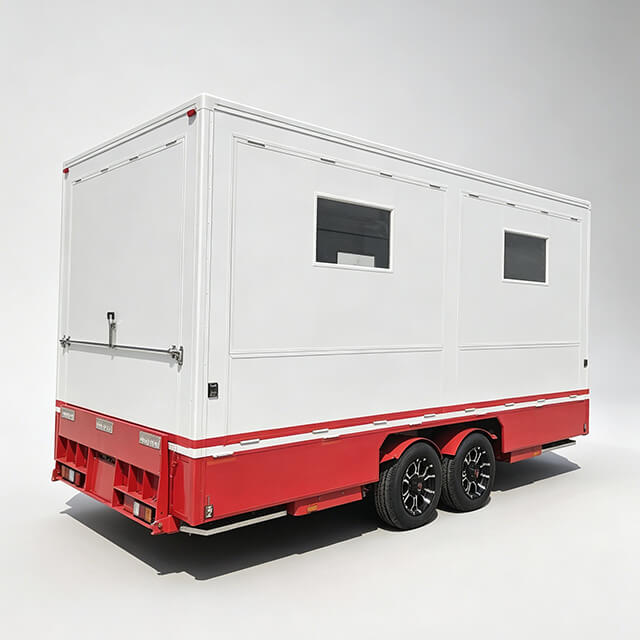

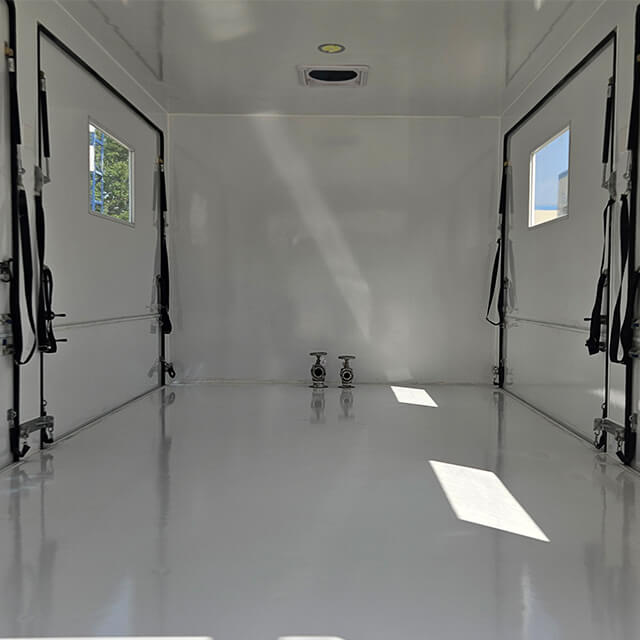

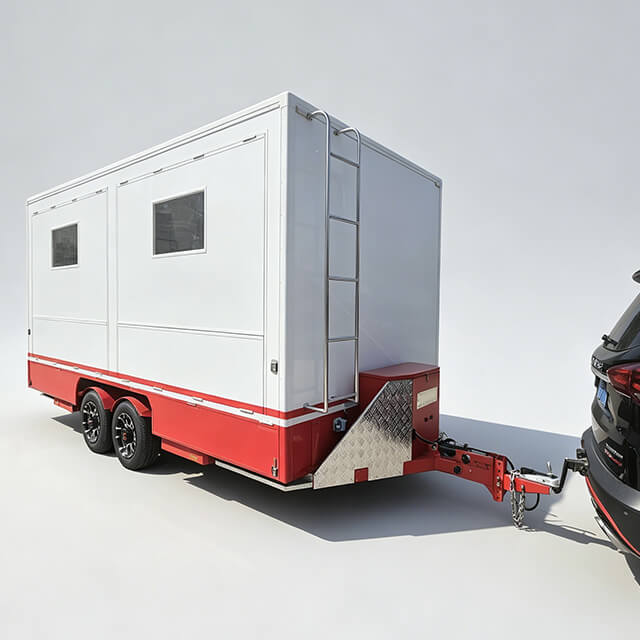

Thickened, durable body, stable running and strong bearing capacity and humanized interior layout, convenient loading and arrangement. Suitable for commercial shipment, outdoor travel supplies transport.
Body dimensions: 5 m long, 2.54 m wide, 2 m high
External dimensions: L6640 × W2540 mm (including tire width)
Chassis dimensions: L5000 × W1940 mm
Minimum clearance between chassis and fenders: 230 mm
Minimum ground clearance: 100 mm
Towing height: 430 mm (adjustable)
Maximum load capacity: 2500 kg
Curb weight: 980 kg
Braking system: 10-inch electric brakes on all four wheels
Rims: Steel rims (aluminum alloy rims optional)
Number of tires: 4 (spare tire optional)
Tire size: 195/70R15C
Lifting mechanism: Chassis hydraulic lift
Battery: 12 V, 80 Ah
Power source: 12 V hydraulic lift
Control method: Remote control for lifting (manual option available)
Maximum operating pressure: 120 bar
Winch: 12,000 lbs (optional)
Spare tire: Optional
Suspension: 4-wheel independent suspension
