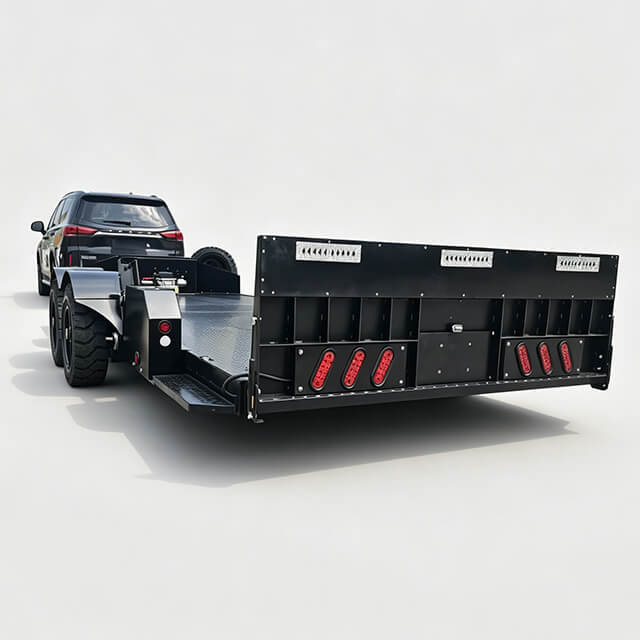

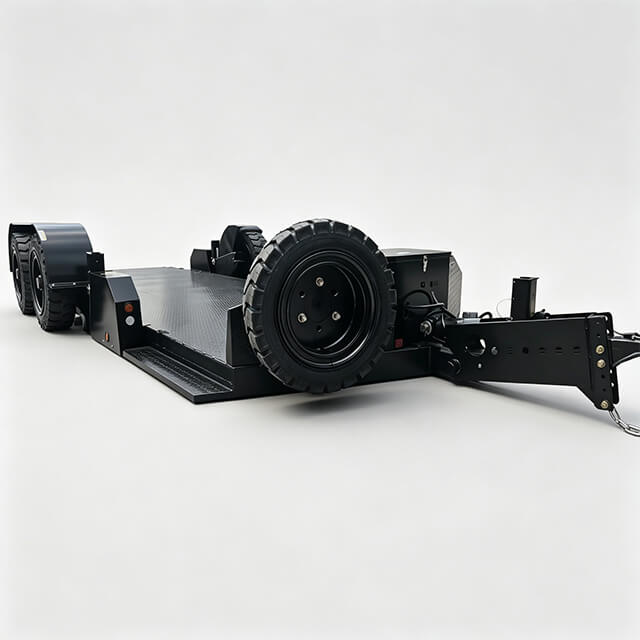

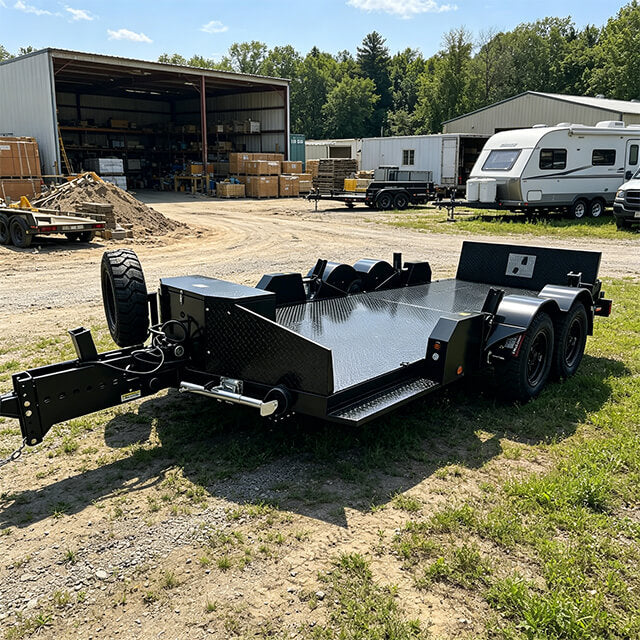

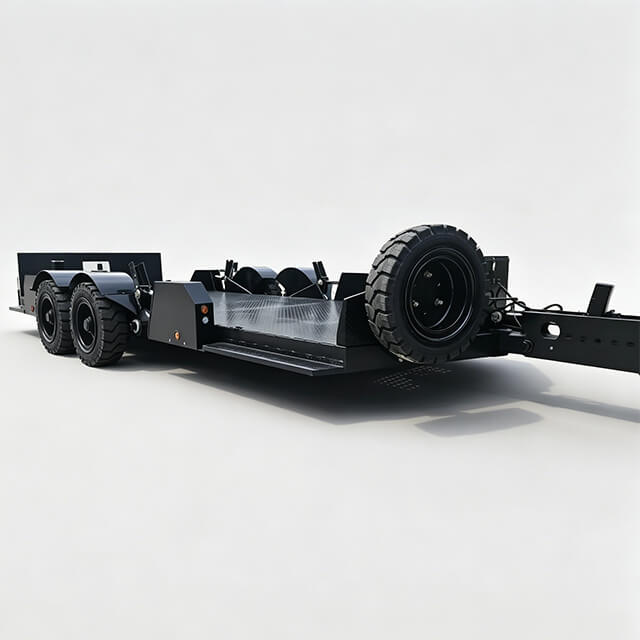

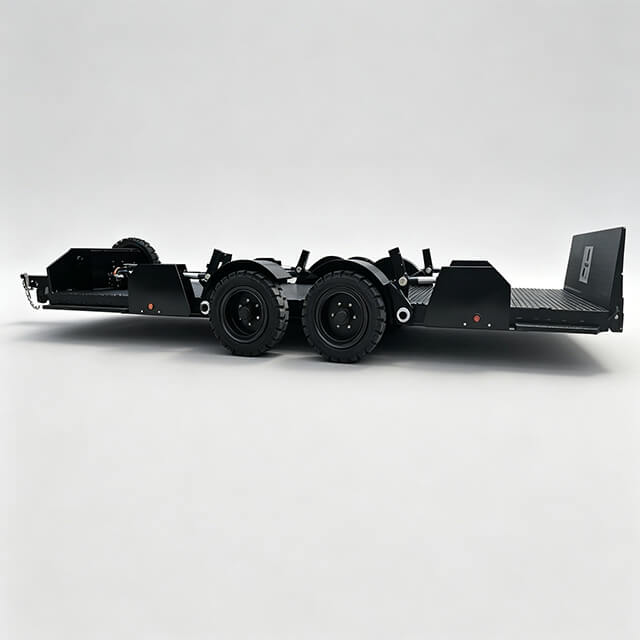

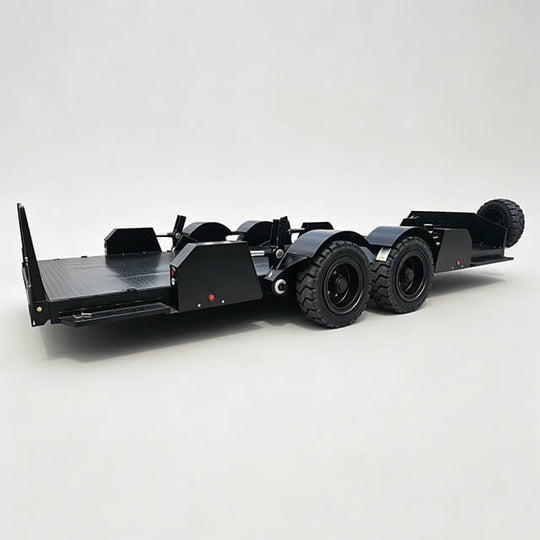

Low drop platform for easy car loading, robust steel frame with high load capacity. Stable traction and balanced structure, safely carry various vehicles. Perfect for vehicle delivery and racing car transport.
Trailer Dimensions:
Internal net length: 5500 mm
Internal net width: 2110 mm
The total length and width of the trailer shall be subject to the dimensions specified in the drawings, confirmed by both parties
Maximum load capacity: 10 tons

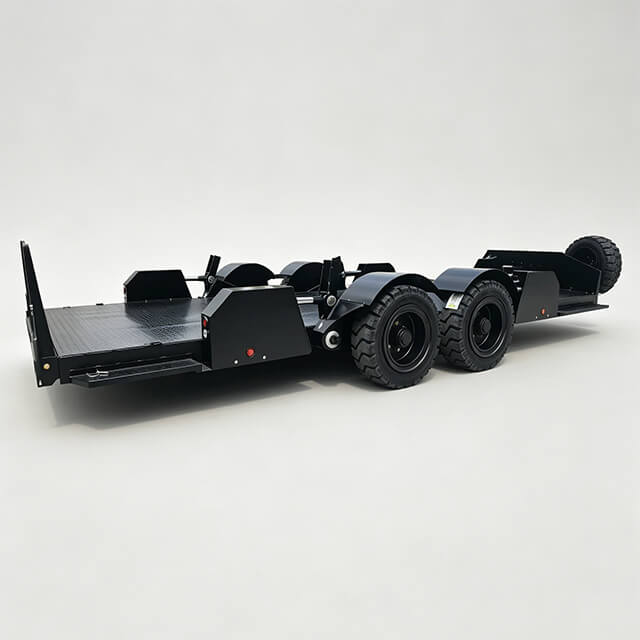

Equipped with a ring-type hitch and leaf spring suspension
Pneumatic tires: 28*9-15
5 tires (including spare) with DOT certification
5 black steel rims, without brakes
24V 3kW dual-control power unit (factory-supplied tank does not include hydraulic fluid; customer must provide their own)
Includes 24V lead-acid battery

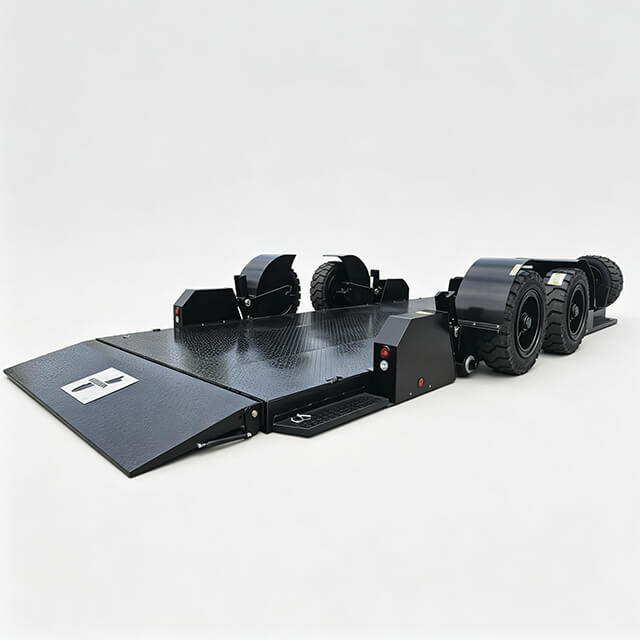

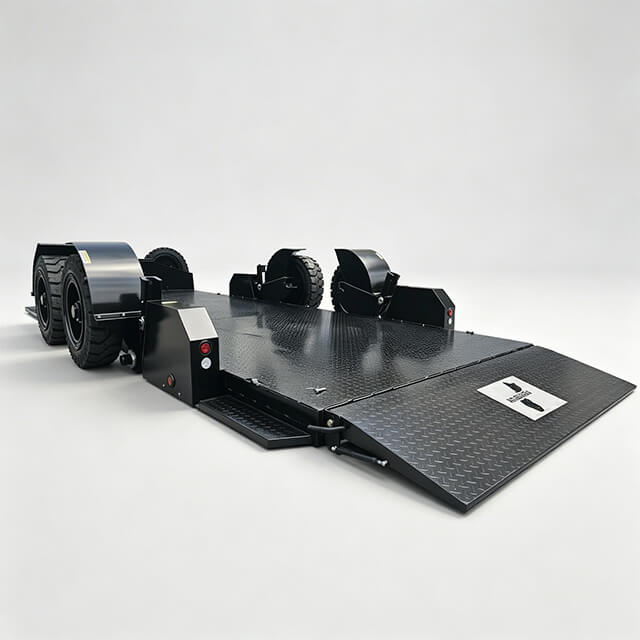

Hydraulic lifting
Equipped with a charge indicator
American-style 7-pin plug
Rear taillights are American-style DOT-certified

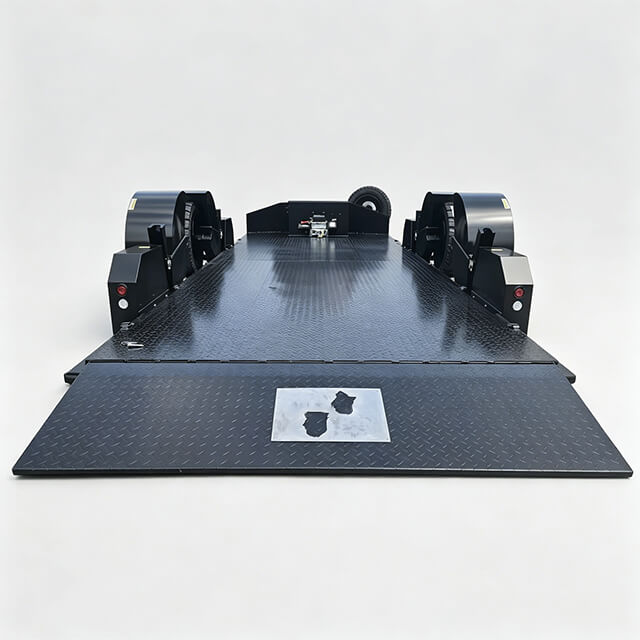

Floor panels are 3 mm-thick checker plate
A total of 12 D-rings on both sides of the deck, with 4 D-pins
Winch mounting bracket. Dimensions subject to the confirmed drawings
Color: Black
Surface treatment: Shot blasting + spray painting
Note: The 10-ton trailer has a maximum speed of 30 km/h
